LPI-4-XEC Epic Series
| Display: | Digits: | 4 ½ digits (±19999 counts) |
| Type: | 0.45" (11.4 mm) 7 segment high contrast LCD | |

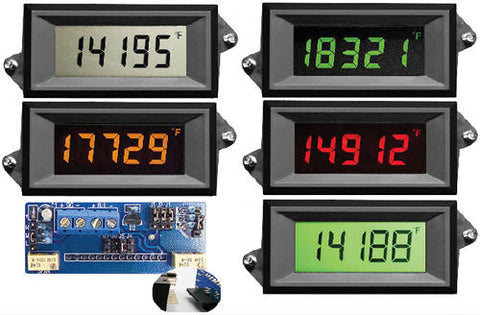

| Backlighting: | Optional Red Negative (red numbers/black background) Optional Green Negative (green numbers/black background) Optional Amber Negative (amber numbers/black background) Optional Green Positive (black numbers/green background) |
|
| Polarity: | automatic, “-” displayed | |
| Annunciators: | °F, °C, PSI, %, user selectable | |
| Decimal Points: | 4 position, user selectable | |
| Overrange: | four lower order digits blank for inputs >19999 & <-19999 | |
| Inputs: | Ranges: | 4-20 mA DC |
| Configuration: | bipolar differential | |
| Impedance: | 390Ω | |
| Performance: | Accuracy: | ±(0.1% of fs + 2 count) |
| Conversion Rate: | 3 per second | |
| Normal Mode Rejection: | >30 dB @ 60 Hz | |
| Common Mode Range: | ±1 VDC max | |
| Common Mode Rej.: | >86 dB | |
| Adjustments: | span (gain) and zero (offset) | |
| Warmup: | 10 minutes typical | |
| Temperature Coeff.: | ± 100 ppm per °C typical | |
| Environment: | Operating Range: | 0 to 50 °C |
| Storage Range: | -10 to 70 °C | |
| Power Supply: | powered by the milliamp control loop | |
| Optional Backlight: | 24 VDC at 35 mA typical | |
| Mounting: | snap-in bezel mount or clamp and gasket | |
| Connection: | 2 screw terminal (4 with backlight) |
LPI-4-XEC Epic Series Ordering Information
Show Cross-Reference Table
| Image | Model | Description | Price | |
|
CVC | Compact Current & Voltage Calibrator | $170.78 | |
|
LPI-4-XEC | No Backlight LCD, RANGE: 4-20mA, MOUNTING: Snap in or clamp and gasket | $118.80 | |
|
LPI-4A-XEC | Negative Amber LCD, RANGE: 4-20mA, MOUNTING: Snap in or clamp and gasket | $129.80 | |
|
LPI-4G-XEC | Negative Green LCD, RANGE: 4-20mA, MOUNTING: Snap in or clamp and gasket | $129.80 | |
|
LPI-4GP-XEC | Positive Green LCD, RANGE: 4-20mA, MOUNTING: Snap in or clamp and gasket | $129.80 | |
|
LPI-4R-XEC | Negative Red LCD, RANGE: 4-20mA, MOUNTING: Snap in or clamp and gasket | $129.80 | |
|
PW1.0 | Regulated 0.5 amp power supply that accepts 24 VAC at the input and provides 24 VDC at the output. | $27.50 | |
|
PW1.5 | Regulated 1.5 amp power supply that accepts 24 VDC/VAC and provides an adjustable 1.5 to 29VDC output. | $28.60 | |
|
PW2-24 | DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output | $42.90 |
