PW1 Series

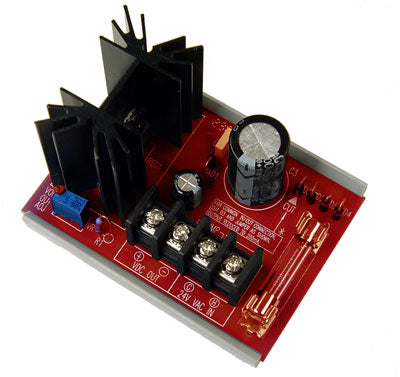

The Model PW 1.0 is a regulated 0.5 amp power supply that accepts 24 VAC at the input and provides 24 VDC at the output. The PW 1.0 can be ordered with any output voltage from the 1.5V to 29 VDC. Field voltage adjustments may also be made using only a screwdriver. The power supply is provided with a mounting track for easy field application. These low-cost power supplies feature good regulation and have full over-current protection.
| Voltage: | Input : | 24 VAC, 50/60 Hz |
| Output: | 24VDC (full wave rectified and regulated) adjustable 1.5V - 29 VDC | |
| Output Current: | 0.5 amps | |
| Over-current Protection: | 1 amp fuse | |
| Environment: | Operating Temperature: | 0 to 55 °C |
| Max. Humidity: | 95% RH, noncondensing | |
| Weight: | 0.25 lb. | |
| Mounting: | snap-track included | |
| Output Ripple Voltage: | No Load: | Max Load: |
| 2mVp-p | 2mVp-p | |
| Ripple Rejection: | 65dB |
PW1 Series Ordering Information
Show Cross-Reference Table
| Image | Model | Description | Price | |
|
PW1.0 | Regulated 0.5 amp power supply that accepts 24 VAC at the input and provides 24 VDC at the output. | $27.50 |
